本機為實驗室干、濕兩用磨樣機，結構緊湊新穎，傳動簡單，膠輥少，磨礦效率高，操作方便、安全可靠?？晒┮苯稹⒔ú?、地質、化工和煤炭等實驗研究單位及選礦廠進行礦石可選性研究或供其它工業部門磨細少量物料之用。尤其是黃金樣品磨細的****理想設備。本產品由原地礦部唯一指定企業生產，執行行業標準。

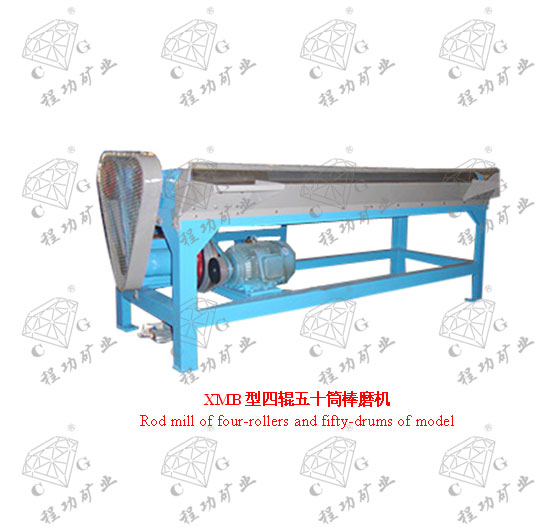

The machine is dry and wet dual -purpose sample grinding device and features compact and original structure, simple drive, few rubber roller, highly efficient grinding, convenient operation, safety and reliability. It can be used in ore feasibility study for labs and research institutes of metallurgical, building material, geological, chemical and coal industries as well as mineral processing plant or for fine grinding of minor materials in other industries. It is an ideal equipment for fine grinding of gold sample. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
| 筒體容積 Drum volume | L | 1 | 2 |
| 筒體尺寸 Drum size | mm | Φ85×130 | Φ120×180 |
| 磨 礦 量 Capacity | g | 75 ～ 210 | 250 ～ 400 |
| 給料粒度 Feed size | mm | ≤2 | |
| 主動輥?zhàn)愚D(zhuǎn)速 Drum speed | r/min | 165 、 200 | |
| 電機功率 Power | kw | 2.2 | |
| 外形尺寸 Overall dimensions | mm | 2125×740×980 | |
| 重 量 Weight | kg | 200 | |
| 注：筒的數量由客戶定，價格另計。 | |||
